RC Series Helical Gearbox
Helical Gearbox

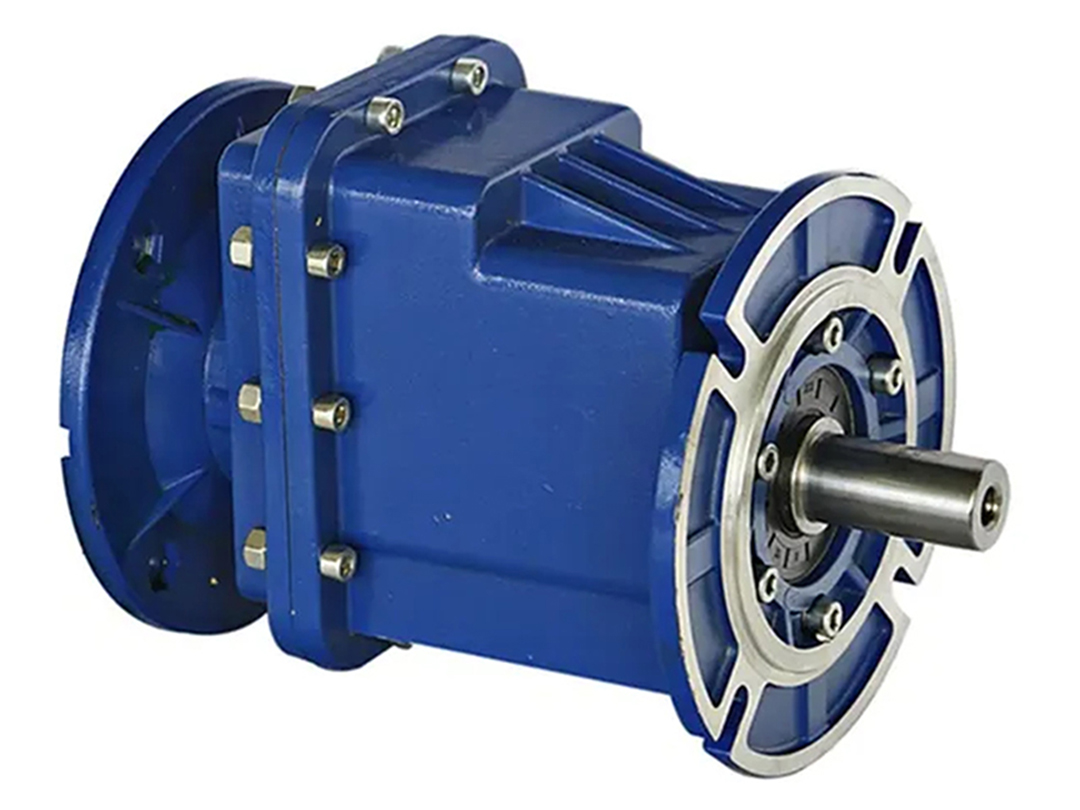

RC Series Helical Gearbox (1).jpg

RC Series Helical Gearbox

The RC Series Helical Gearbox is a compact, high-efficiency parallel-shaft reducer designed for a wide range of industrial applications requiring reliable torque transmission, smooth operation, and space-saving installation. Featuring precision-ground helical gears and a robust cast iron housing, the RC series delivers exceptional performance in conveyors, mixers, packaging machines, material handling systems, and more.

Engineered for versatility and durability, this gearbox combines low backlash, high torsional stiffness, and quiet running characteristics—making it suitable for both standard industrial environments and noise-sensitive facilities. With multiple mounting options, customizable output configurations, and compatibility with global motor standards (IEC B5/B14), the RC series offers a cost-effective and future-proof drive solution.

    Contact us
    product Information

    Key benefits include

    High efficiency up to 98% per stage
    Low noise (<65 dB) and minimal vibration
    Modular design for easy integration
    Long service life with minimal maintenance
    Wide ratio range from 3.66:1 to 247:1
    Whether used in food processing, logistics, or heavy manufacturing, the RC Series ensures consistent, dependable power transmission under continuous or cyclic loads.

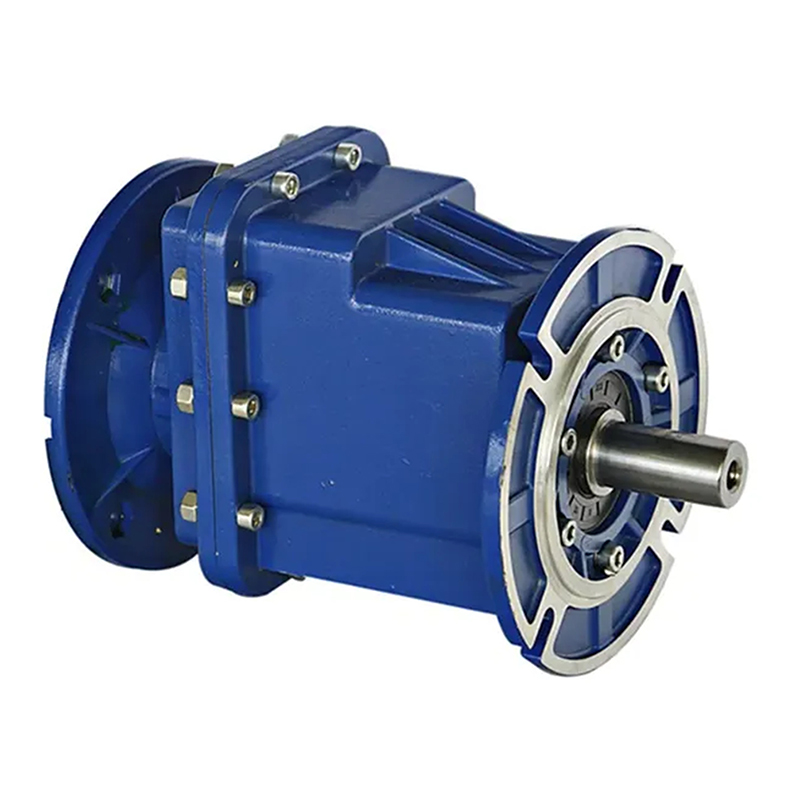

    RC Series Helical Gearbox (1)

    How to Select the Right Model

    RC Series Helical Gearbox (2)

    Model No

    Output torque

    Rated input speed

    Max input speed

    Ratio

    Rated Power

    RC01

    116N.m

    ≤1500rpm

    3000rpm

    3.82-53.33

    120-1500W

    RC02

    197N.m

    ≤1500rpm

    3000rpm

    3.66-54

    180-1500W

    RC03

    300N.m

    ≤1500rpm

    3000rpm

    3.74-51.3

    370-4000W

    RC04

    491N.m

    ≤1500rpm

    3000rpm

    3.74-51.3

    750-4000W

    Housing:

    Aluminum Alloys

    Gears:

    Hardened Helical Gears

     Input Configurations:

    Hollow Shaft with IEC Normalized Motor Flange
    Solid Shaft Input

    Applicable Motors:

    IEC-normalized Motors and Brake Motors
    Explosion-proof Motors
    Inverter Motors
    Servo Motors

    Output Configurations:

    Solid Shaft with B5 Output Flange
    Solid Shaft with B14 Output Flange

    Models:

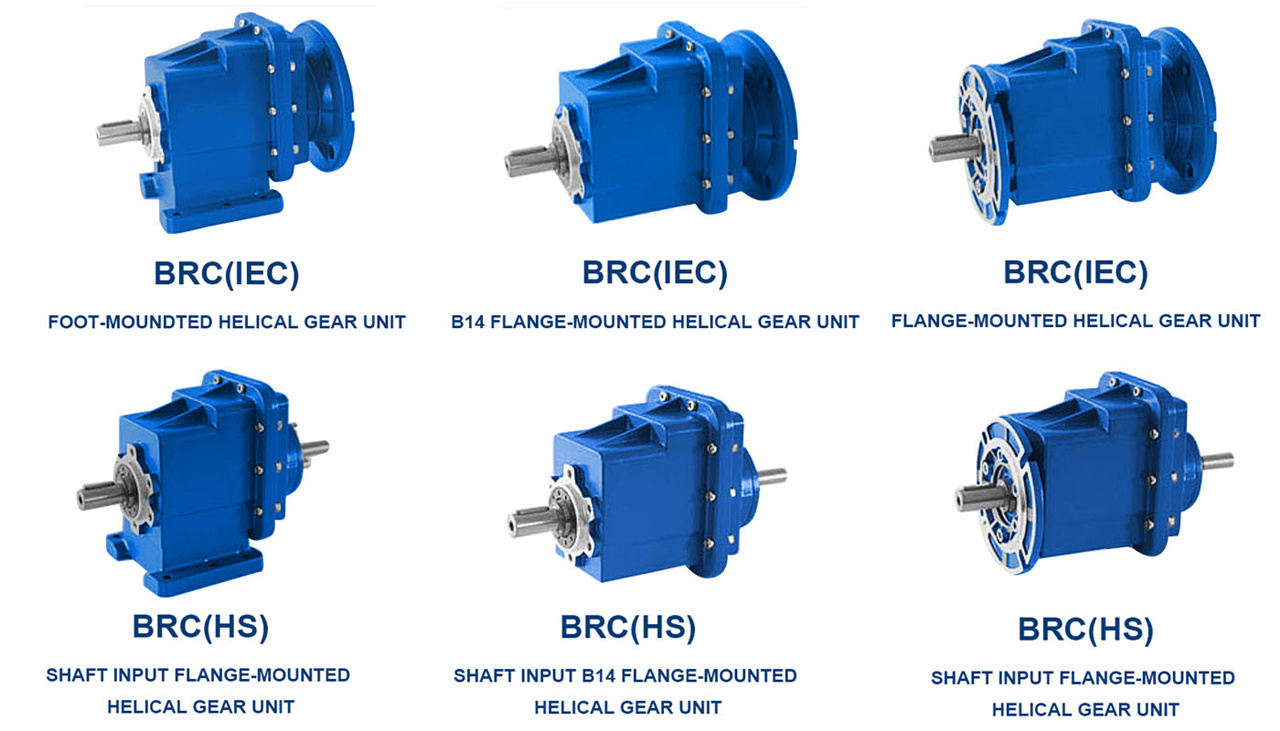

    RC(Foot-mounted): RC01,RC02,RC03,RC04
    RCF(B5 Flange-mounted): RCF01,RCF02,RCF03,RCF04
    RCZ(B14 Flange-mounted): RCZ01,RCZ02,RCZ03,RCZ04

    Installation:

    Foot-mounted
    B5 Flange-mounted
    B14 Flange-mounted

    Lubrication:

    Oil-bath and Splash Lubrication

    Cooling:

    Natural Cooling

    Product Advantages

    High Efficiency & Energy Savings

    Precision helical gears with optimized tooth profiles reduce friction losses, achieving up to 98% efficiency per stage—lowering energy consumption and operational costs.

    Ultra-Quiet & Smooth Operation

    Helical gear teeth engage gradually across the face width, minimizing impact noise and vibration. Noise levels typically stay below 65 dB(A), ideal for indoor or office-proximate installations.

    Robust Cast Iron Housing

    HT250 gray iron housing provides excellent vibration damping, thermal stability, and resistance to mechanical shock—ensuring long-term alignment and gear life.

    Modular & Flexible Design

    Standardized IEC motor interfaces (B5/B14 flanges), multiple output shaft options (solid/hollow/keyed/spline), and optional accessories (backstop, torque arm, shrink disc) enable rapid customization.

    High Load Capacity & Reliability

    Gears made from 20CrMnTi alloy steel, carburized, quenched, and ground to ISO Class 6 accuracy—capable of withstanding heavy shock loads and continuous duty cycles.

    Easy Maintenance & Global Serviceability

    Large oil-fill and drain ports, sight glass, and vent plug simplify lubrication management.  Spare parts are standardized and available worldwide through our distribution network.

    product Information

    Internal Structure

    The ZLYJ gearbox operates as a two-stage or three-stage hardened parallel-shaft reducer:
    Input Stage: The motor drives the high-speed input shaft, which connects to the first-stage pinion gear.
    Intermediate Stage(s): Power is transferred through one or two intermediate gear sets, progressively reducing speed and increasing torque.
    Output Stage: The final gear drives the hollow output shaft, which is directly coupled to the extruder screw.
    Critically, the thrust bearing assembly—located inside the output housing—absorbs the massive axial force generated by molten plastic pressure pushing back against the screw.  This integrated design ensures that gear teeth only transmit torque, not axial loads, dramatically improving reliability.
    Lubrication is typically via oil bath or forced circulation, with oil splashed or pumped onto gear meshes and bearings to dissipate heat and reduce wear.

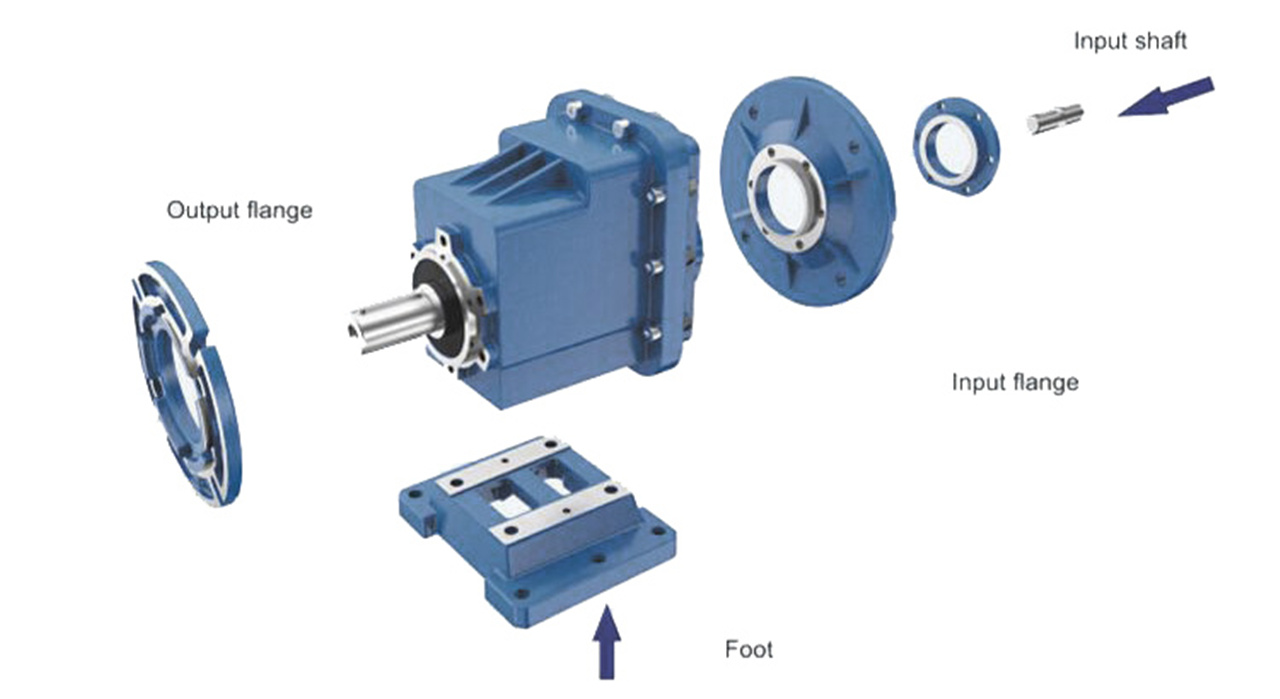

    RC Series Helical Gearbox (3)

    Applications

    The RC Series Helical Gearbox is widely deployed across diverse industries, including:

    • Material Handling: Belt conveyors, roller lines, palletizers

    • Food & Beverage: Mixers, fillers, cappers, labeling machines

    • Packaging: Carton erectors, wrapping machines, case packers

    • Chemical & Plastics: Agitators, extruder feeders, blenders

    • Textiles & Printing: Winding/unwinding stations, printing rollers

    • Woodworking & Metal Processing: Saw feeds, press drives, coil lines

    • Water Treatment: Sludge scrapers, aerators, screw pumps

    • Its versatility makes it a go-to solution for OEMs seeking a reliable, off-the-shelf reducer for mid-power applications.

    product Information

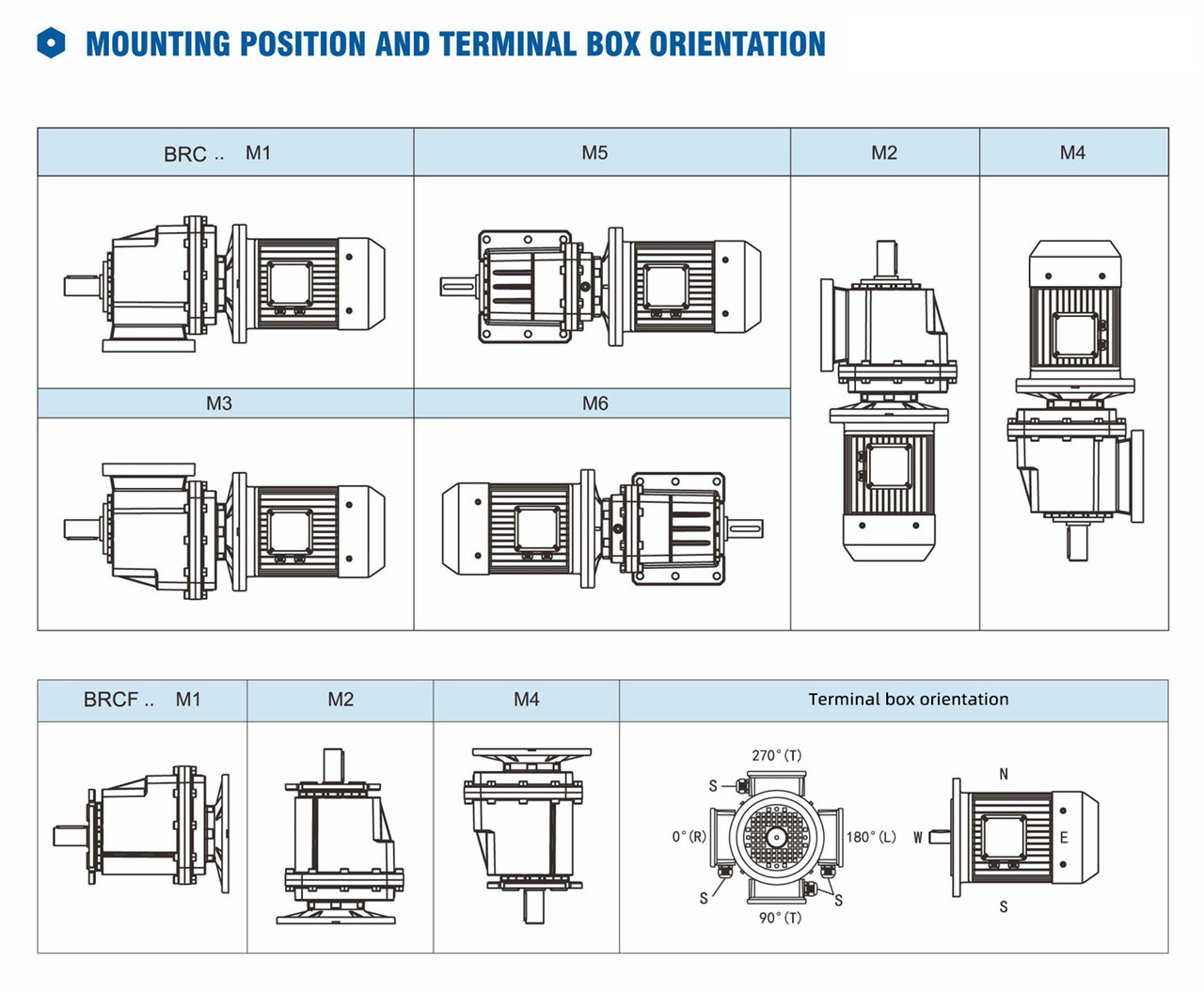

    Mounting Position

    RC Series Helical Gearbox (4)
    The RC Series supports universal mounting orientations, offering maximum flexibility in machine design:
    Horizontal Mounting (M1): Output shaft horizontal, base-mounted—most common for conveyors.
    Vertical Mounting – Shaft Down (M2): Output shaft pointing downward—ideal for mixers or agitators.
    Vertical Mounting – Shaft Up (M3): Output shaft upward—used in lifting or vertical screw applications.
    Flange Mounting (B5/B14): Direct motor coupling without base—saves space and reduces alignment complexity.
    Torque Arm Mounting: For applications where the gearbox must resist reaction torque without rigid base fixation.
    Note: For non-standard positions (e.g., inclined), special lubrication arrangements (oil pump or grease fill) may be required to ensure proper gear and bearing lubrication.

    About Our Factory

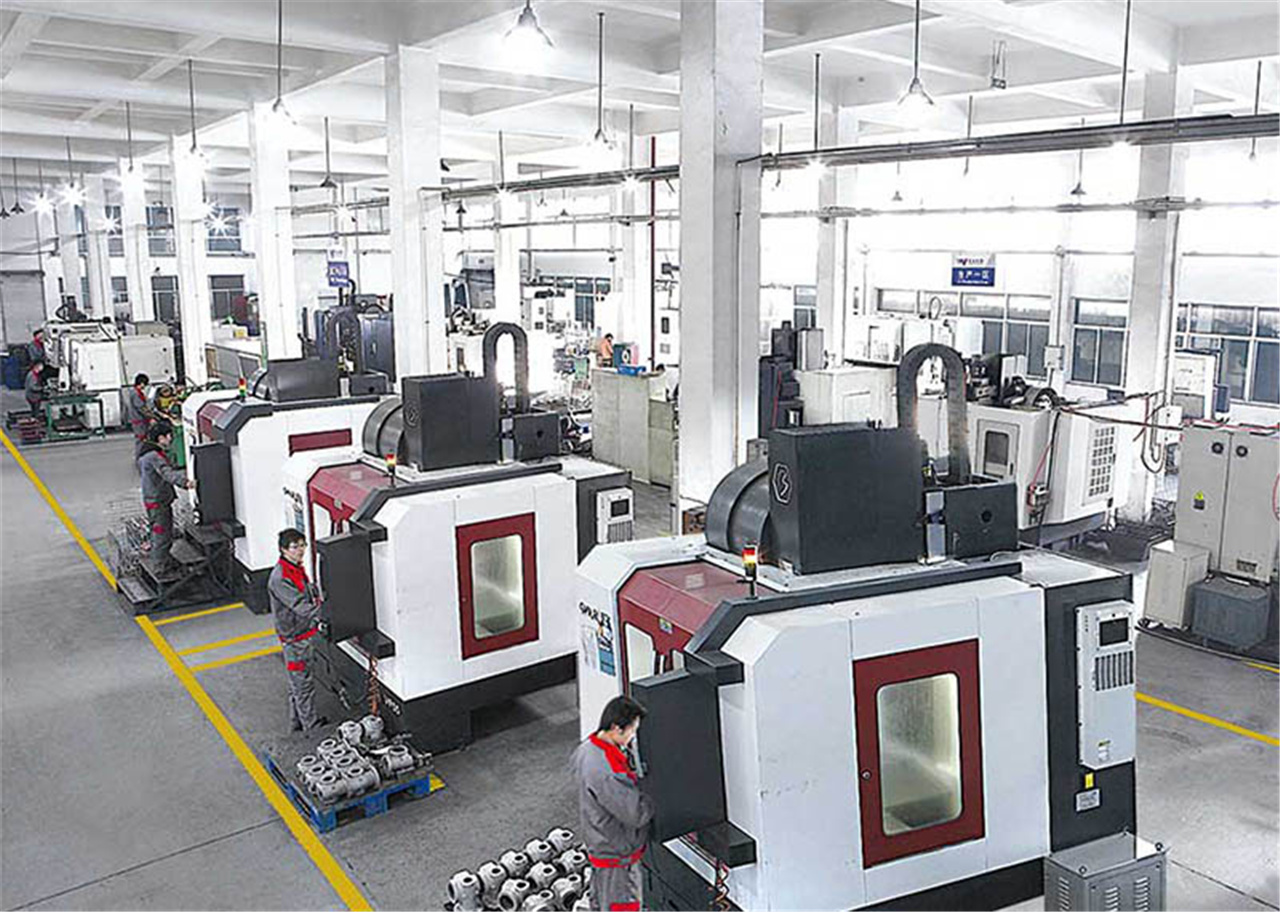

    We are a certified high-tech manufacturer specializing in industrial gearboxes, with over 16 years of experience serving global markets. Our 30,000 m² production facility in Zhejiang, China, is equipped with state-of-the-art machinery, including:

    German HOFLER and Italian SU gear grinding machines
    Japanese MAZAK and OKUMA CNC machining centers
    ZEISS coordinate measuring machines (CMM) for micron-level quality control
    Fully automated assembly lines with 100% load testing before shipment
    We operate under strict ISO 9001:2015 and ISO 14001 management systems. All RC Series gearboxes comply with CE, RoHS, and international safety standards. Our products are exported to more than 60 countries across Europe, North America, Southeast Asia, and the Middle East.
    Committed to innovation, quality, and customer support, we partner with OEMs and system integrators worldwide to deliver efficient, quiet, and durable drive solutions that keep industry moving.
