CF14 High Precision Harmonic Gearbox Reducer
Harmonic Reducer
Harmonic Reducer (1).jpg

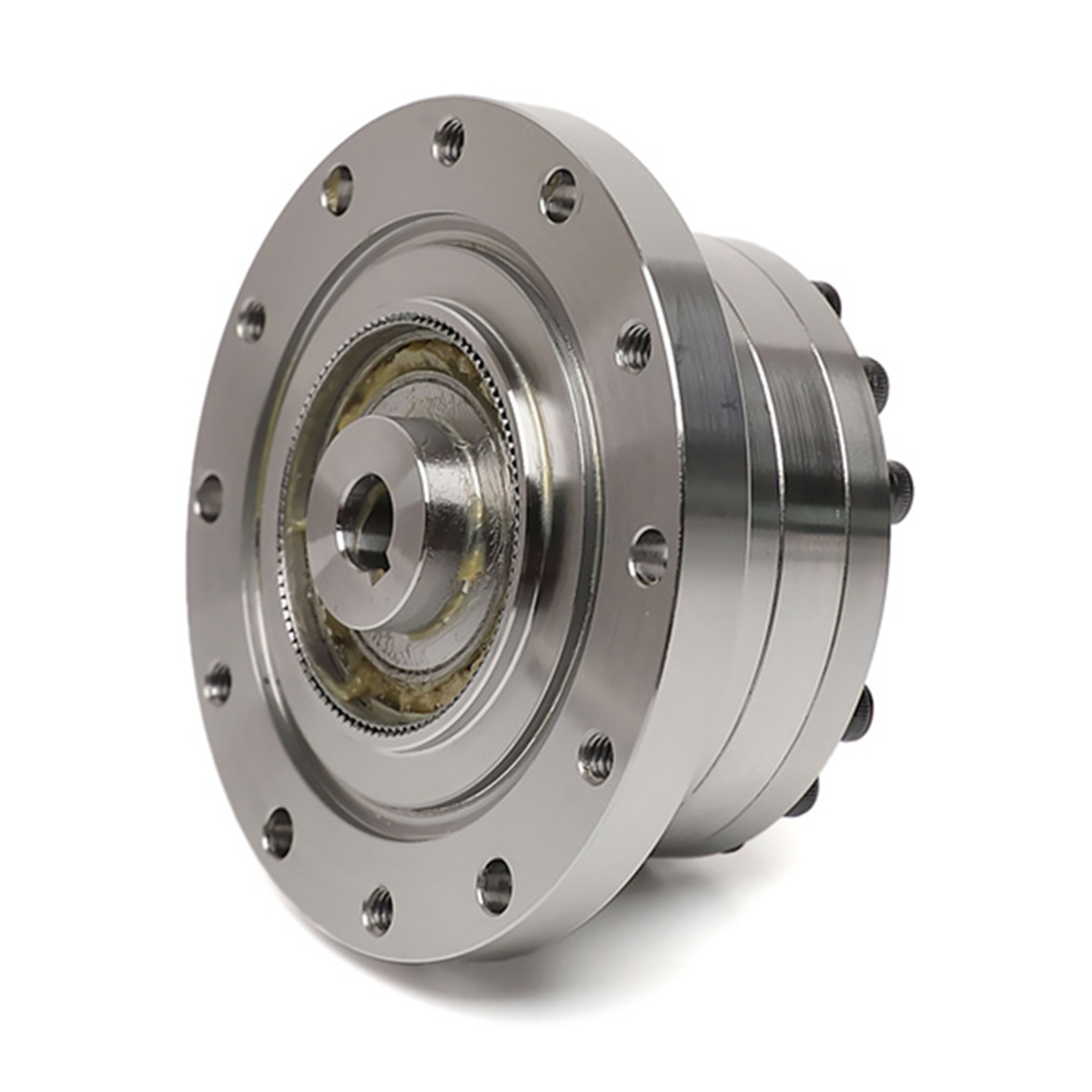

CF14 High Precision Harmonic Gearbox Reducer

The CF14 Harmonic Gearbox Reducer is a high-performance, compact transmission solution engineered for applications demanding exceptional accuracy, high torque density, and minimal backlash.

As part of the CF-GH series, this harmonic reducer delivers precision motion control in robotics, CNC machinery, medical devices, aerospace systems, and automated assembly lines — where even the smallest deviation can affect product quality or safety.

Unlike traditional gearboxes, the CF14 uses advanced harmonic drive technology to achieve zero-backlash operation, ultra-high rigidity, and smooth motion — making it ideal for servo-driven systems requiring precise positioning.

    Contact us
    product Information

    Product display

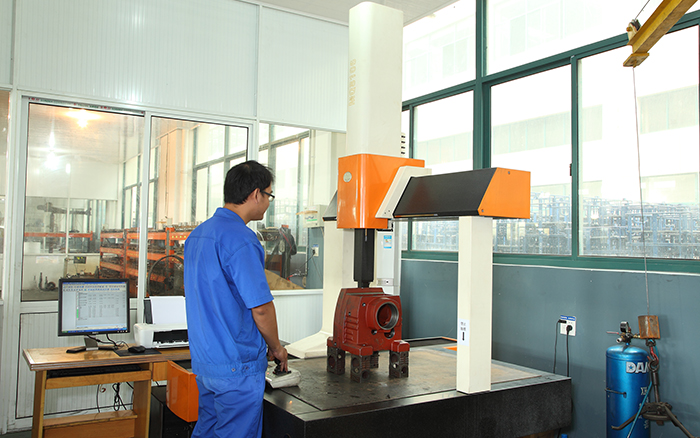

    Coordinate measuring machine

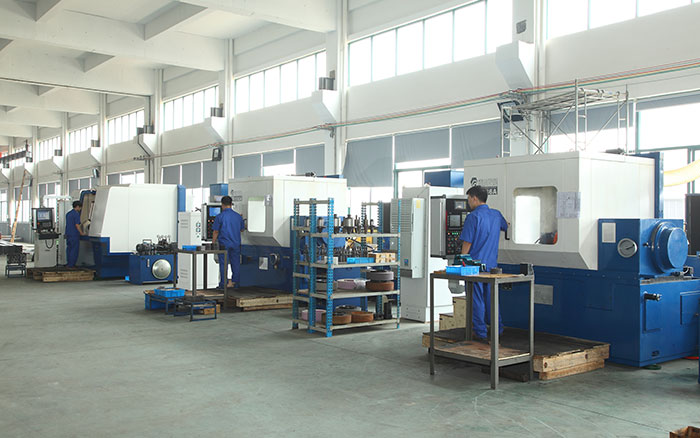

    Gear grinding machine

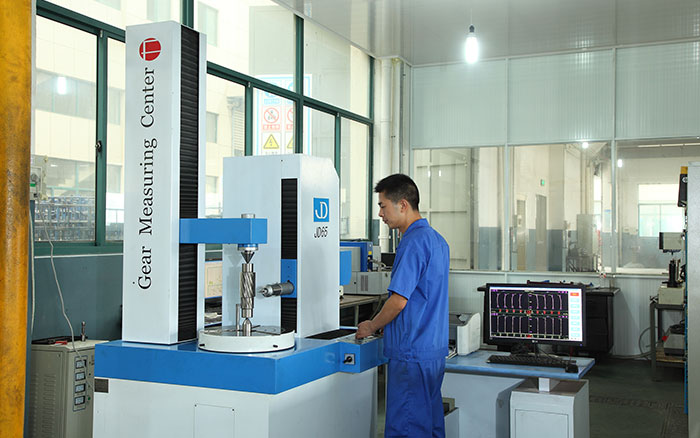

    Gear testing instrument

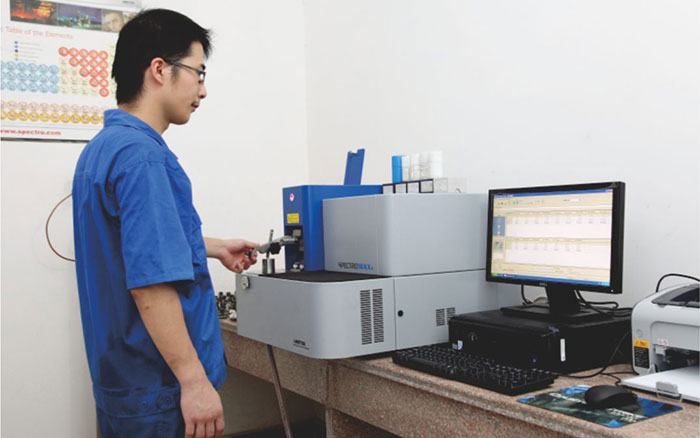

    Spectrometer

    Key Features

    This isn't just another harmonic gearbox — it’s a performance-driven component that enables smarter, faster, and more reliable automation.

    Whether you're building collaborative robots, semiconductor equipment, or surgical assistants, the CF14 ensures your system moves with confidence.

    Ultra-high precision

    <3 arcmin backlash (typical)

    High torque-to-size ratio

    Ideal for space-constrained designs

    Low noise operation

    <65 dB under normal load

    Long service life

    Designed for 20,000+ operating hours

    Available in multiple ratios

    50:1, 80:1, 100:1

    Lightweight construction

    Only 0.62 kg for CF14 model

    Technical Specifications

    Below is the consolidated technical data from your provided image, organized into a clear and professional table format:
    Harmonic Reducer (2)

    CF-GH Series Rating Table

    Model Reduction Ratio Rated Torque @ 2000 rpm (Nm) Rated Torque @ 3000 rpm (Nm) Max Continuous Load Torque (Nm) Peak Torque (Start/Stop) (Nm) Max Instantaneous Torque (Nm) Max Input Speed (rpm) Weight (kg)
    14 50 5.4 4.7 6.9 18 35 8500 Shaft output 0.62 Flange output 0.5
    80 7.8 6.8 11 23 47
    100 7.8 6.8 11 28 54
    ✅ Note: All models support both shaft output and flange mounting configurations. Customized versions available upon request.

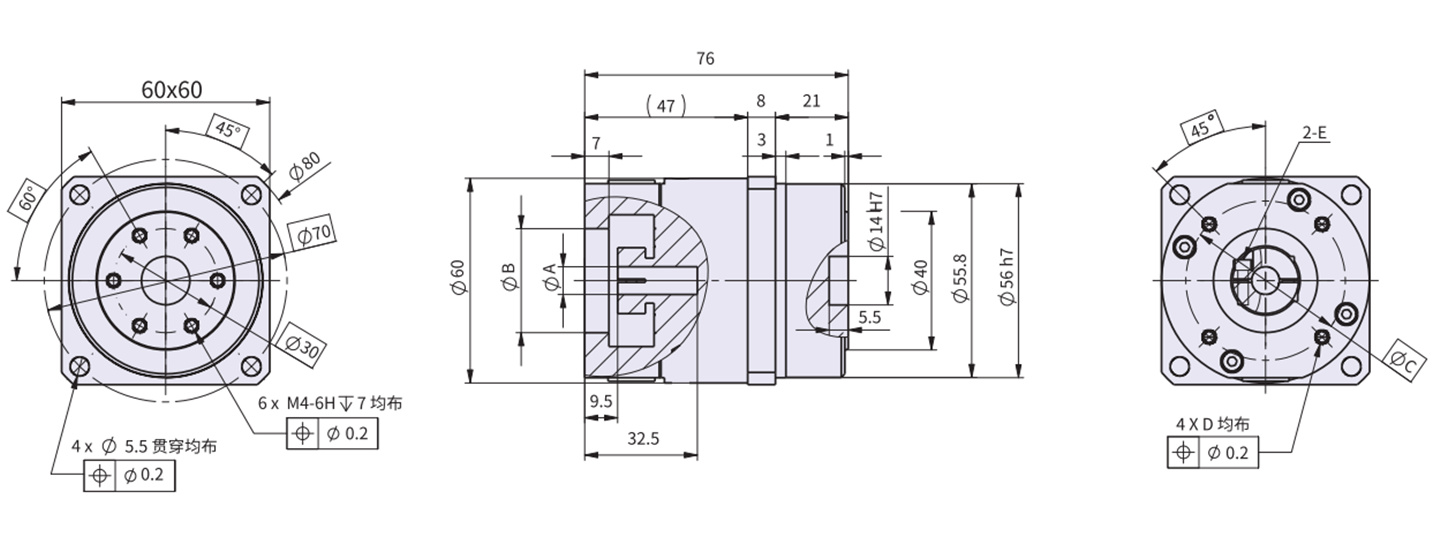

    CF14 Dimensional Table

    Mounting Type (YYYYYY) A B C D E
    A08F01 φ8 +0.02/+0.005 φ30 +0.03/+0.01 φ46 M4×10 M3
    A08F02 φ8 +0.02/+0.005 φ30 +0.03/+0.01 φ45 M3×8 M3
    ✅ Tolerance values ensure precise fitment with standard servo motors and actuators.

    How It Works

    The Science Behind Harmonic Drive Technology

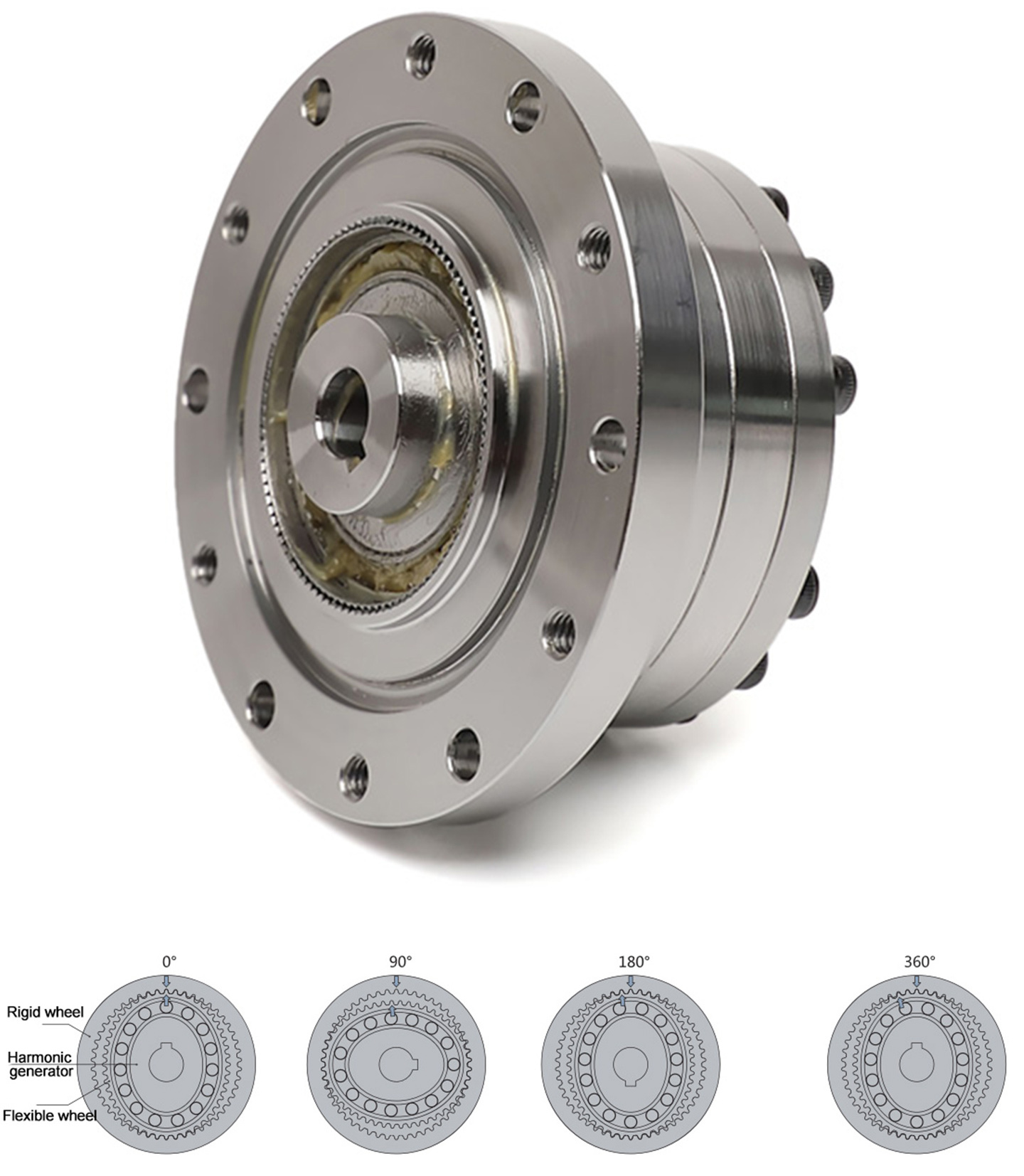

    Harmonic Reducer (1)
    01

    At the core of the CF14 harmonic gearbox lies a revolutionary mechanism based on controlled elastic deformation — a principle that sets it apart from conventional gear systems.

    Wave Generator: An elliptical cam (wave generator) rotates inside the flexible spline (flexwheel).  As it turns, it forces the flexwheel into an oval shape.
    Flexwheel Engagement: The teeth on the inner surface of the flexwheel engage with the rigid outer ring gear (circular spline).
    Tooth Meshing Pattern: At the long axis of the ellipse, the teeth fully mesh;  at the short axis, they disengage.  This creates a continuous "rolling" engagement pattern — known as semi-meshing.
    Motion Transmission: With each rotation of the wave generator, the flexwheel deforms and transmits motion through four distinct phases: engaged → in → out → disengaged.  This results in smooth, backlash-free movement.
    Output Rotation: Since the flexwheel has fewer teeth than the rigid gear, one full rotation of the wave generator produces a small angular displacement of the output — achieving high reduction ratios efficiently.
    This design eliminates play, reduces vibration, and allows for near-zero backlash — critical in applications like robotic arms, where accuracy is paramount.
    For engineers seeking a reliable harmonic reducer, this technology delivers unmatched performance in compact form.

    Application Areas

    The CF14 Harmonic Gearbox Reducer excels in environments where size, accuracy, and reliability are non-negotiable:

    Industrial Robotics

    Used in articulated robot joints for welding, painting, and pick-and-place tasks. Its high stiffness and low backlash enable precise trajectory control.

    CNC Machine Tools

    Ideal for spindle drives, tool changers, and linear axes. Enables smooth, repeatable cuts without chatter or misalignment.

    Medical Equipment

    Found in surgical robots, diagnostic imaging systems, and prosthetics. Requires silent, accurate motion — exactly what the harmonic gearbox provides.

    Consumer Electronics Manufacturing

    Used in automated assembly lines for smartphones, tablets, and wearables. Handles delicate components with micron-level precision.

    Aerospace & Defense

    Applied in satellite attitude control, drone gimbals, and targeting systems. Resists shock and maintains alignment under extreme conditions.

    Laboratory Automation

    Supports micro-pipetting, sample handling, and analysis platforms where repeatability is key.

    In every case, the harmonic reducer becomes the invisible engine behind intelligent motion.

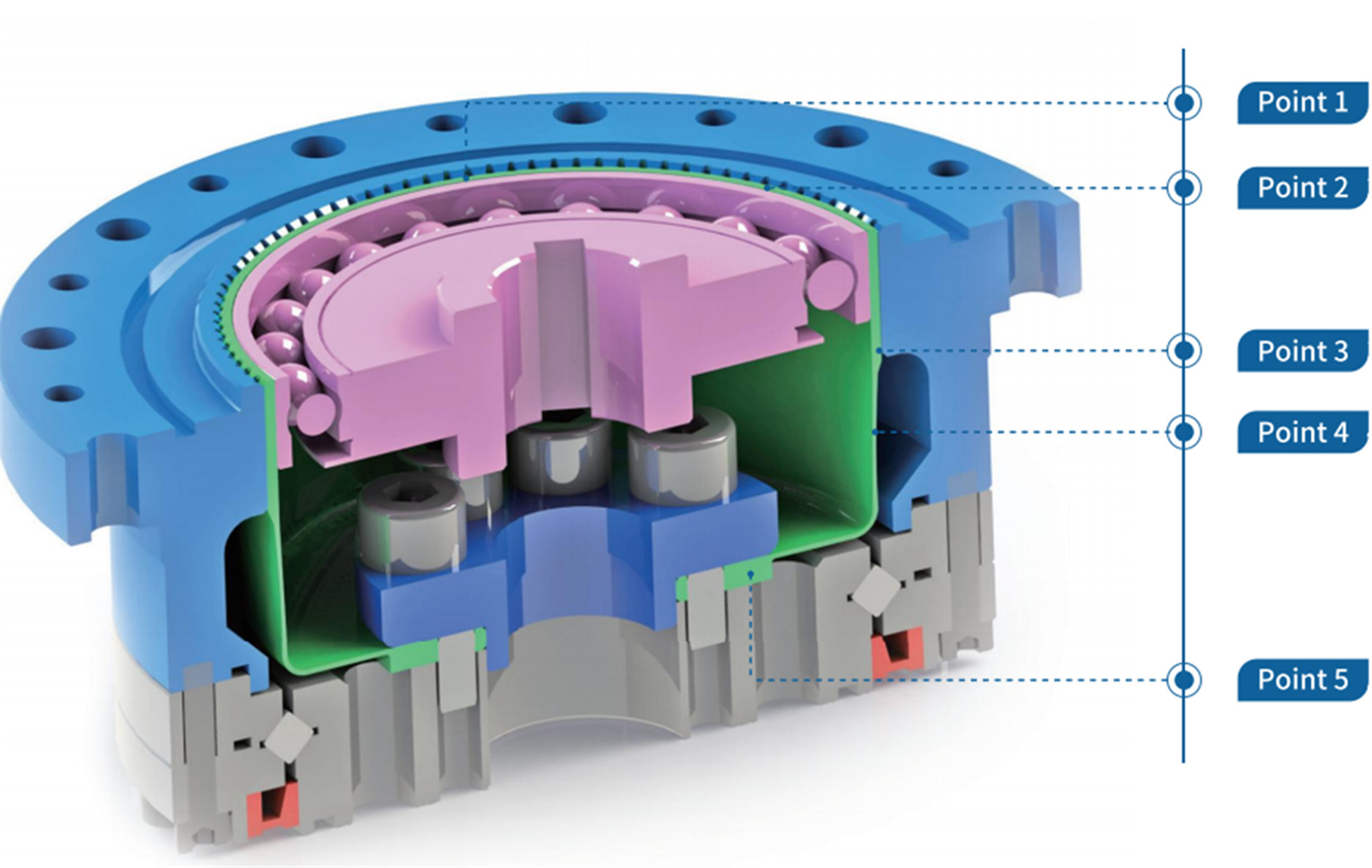

    Based on the detailed diagram and text from your images, here are the five core innovations that make the CF14 superior:Core Technological Advantages: Why CF14 Stands Out

    Harmonic Reducer (5)
    • + -

      Point 1: S-Type Tooth Profile – Lower Noise

      Innovative S-shaped tooth design increases contact area between gears. Reduces vibration and friction during operation. Results in up to 28% lower noise levels compared to traditional profiles.

    • + -

      Point 2: Optimized Flexwheel Design – Longer Life

      Uses variable thickness flexwheel with stress-relief treatment. Minimizes localized stress concentration. Extends fatigue life by over 28% (vs. standard designs).

    • + -

      Point 3: Enhanced Rigidity – Higher Accuracy

      Thin-wall structure analyzed via FEA simulation. Achieves optimal wall thickness for maximum stiffness. Improves torsional rigidity and positional accuracy.

    • + -

      Point 4: Flexible Design Freedom

      Supports custom ratios up to 1626:1 (via special configuration). Can be adapted for lightweight materials (e.g., aluminum alloys) to reduce overall weight by up to 30%. Ideal for portable robots and drones where mass matters.

    • + -

      Point 5: Advanced Materials & Processing

      High-grade alloy steel for wave generators. Surface-hardened flexwheels for wear resistance. Precision machining ensures consistent performance across batches. These features combine to create a harmonic reducer that doesn’t just meet specifications — it exceeds them.

    How to Choose the Right Model

    Selecting the correct harmonic gearbox depends on several factors:

    🔹 Required Reduction Ratio: Common options include 50:1, 80:1, 100:1, 120:1, and 160:1. Higher ratios increase torque but reduce speed.
    🔹 Input Speed: Match motor RPM to max input speed (e.g., CF14 supports up to 8500 rpm).
    🔹 Torque Requirements: Consider both continuous load and peak/start-stop torque. Use the rating table above to compare.
    🔹 Mounting Style: Choose between shaft output (A08F01) or flange mount (A08F02) depending on your motor interface.
    🔹 Space Constraints: CF14 is among the smallest in the series — perfect for tight installations.
    Tip: For servo systems using 200W–500W motors, the CF14 is often ideal. For larger loads, consider CF20 or CF32.
    Need help? Send us your motor specs and application details — we’ll recommend the best fit.
