Overview of Planetary Gearboxes and Their Applications
Planetary gearboxes play a crucial role in various mechanical systems. Their unique design consists of a central sun gear, multiple planet gears, and a ring gear. This arrangement allows for significant torque transmission while maintaining a compact size. Because of this, planetary gearboxes are frequently used in robotics, automotive applications, and industrial machines.
In robotics, these gearboxes enable precise control of movement. The ability to reduce speed while increasing torque makes them ideal for robotic arms. Similarly, in automotive applications, they enhance the efficiency of powertrains. Engineers often choose planetary gearboxes for their reliability and performance under heavy loads. These gearboxes also require careful consideration during design. The balance of efficiency, size, and load capacity is not always straightforward.
There are challenges too. Designing a gearbox that meets all operational demands is complex. Some may find issues with heat generation in high-performance scenarios. Choosing the right materials and configurations can be tricky. Each application may require a unique approach to maximize performance. This range of uses highlights the importance of planetary gearboxes in modern engineering. They are indispensable in countless applications, showcasing versatility in design and functionality.
Basic Components of a Planetary Gearbox: Sun, Planet, and Ring Gears
A planetary gearbox consists of three main components: the sun gear, planet gears, and ring gear. The sun gear is at the center, driving the system. It receives input from a motor or other source. The planet gears orbit around the sun gear. These gears are mounted on a movable arm called a carrier.
The ring gear surrounds the planet gears, providing an outer boundary. This unique arrangement allows for high torque transmission in a compact space. The interaction among these components enables efficient force distribution. The design minimizes backlash and improves durability. However, the complexity can lead to challenges in maintenance and repair.
Planetary gearboxes are widely used in various applications. They power machinery, including conveyors and robotic systems. While they offer advantages like compactness, they can also be difficult to analyze and optimize. Understanding their components is crucial for engineers, but practitioners may overlook this. Engaging with these details can lead to better design choices and enhanced performance.
How Power Transmission Works in a Planetary Gear System
A planetary gearbox operates through a unique design that optimizes power transmission. This system consists of a central sun gear, multiple planet gears, and an outer ring gear. The arrangement allows for efficient torque distribution. According to industry reports, planetary gearboxes can achieve a torque density that is up to 50% higher than conventional gear systems.
In a typical application, when the sun gear rotates, the planet gears orbit around it. This rotation amplifies the torque while reducing speed. For instance, a common setup can provide gear reduction ratios from 3:1 to 100:1, which is highly beneficial in various fields. Data shows that the efficiency of a well-designed planetary gearbox can reach up to 98%, making it a preferred choice in many mechanical systems.
Tips: Regular maintenance is crucial. Check for lubrication levels often. Wear and tear can affect efficiency.
Understanding the limitations is vital too. Higher torque ratings may introduce more friction and heat. This could lead to potential failures if not addressed. Monitoring the operating conditions helps mitigate these risks. Using a Drill Planetary Gearbox showcases these principles effectively, ensuring reliability in demanding tasks.
What is a Planetary Gearbox and How Does It Work?
| Dimension |
Description |
| Gear Ratio |
The ratio of the output speed to the input speed, indicating how many times the output shaft rotates for each rotation of the input shaft. |
| Load Capacity |
The maximum load the gearbox can handle without failure, measured in torque or force. |
| Efficiency |
The percentage of input energy that is converted to output energy, typically around 90-95% for high-quality designs. |
| Types |
Different configurations including single-stage, multi-stage, and custom setups for various applications. |
| Applications |
Widely used in robotics, automotive, aerospace, and industrial machinery for torque amplification and speed reduction. |
| Advantages |
High torque density, compact design, and ability to distribute load among multiple gears. |
| Disadvantages |
Complex manufacturing process and potential for higher costs compared to other gear systems. |
Advantages of Planetary Gearboxes in Industrial Applications
Planetary gearboxes offer remarkable advantages in industrial applications. Their compact design allows for high torque and speed reduction in a small space. According to a report by Research and Markets, the global planetary gearbox market is expected to reach $5.74 billion by 2027. This growth underscores the increasing reliance on these systems across various industries.
One of the most notable benefits of planetary gearboxes is their efficiency. They can achieve efficiency ratings of over 95%. This high efficiency translates into lower energy consumption. For example, many manufacturing plants are adopting these gearboxes to reduce operational costs significantly. The design also minimizes backlash, which improves precision in robotic applications.
However, these systems can be complex. Installation and maintenance require specific expertise. Many companies face challenges related to lubrication and heat dissipation in high-performance scenarios. While some suppliers attempt to streamline these processes, the risk of overlooking crucial details remains. In the UK, businesses must weigh the benefits against potential operational hurdles when considering planetary gearbox solutions.
Advantages of Planetary Gearboxes in Industrial Applications
Key Performance Metrics: Efficiency, Torque, and Gear Ratios
A planetary gearbox stands out for its compact design and impressive performance. This system effectively distributes torque among multiple gears, enhancing efficiency. The efficiency of a planetary gearbox can reach up to 98%, minimizing energy loss. However, achieving this level of efficiency requires precise engineering and quality materials.
Torque is another critical performance metric. A planetary gearbox can significantly amplify the input torque, making it ideal for heavy-duty applications. The gear ratios play a vital role in this amplification. By changing the gear ratio, users can adjust the output speed and torque. This flexibility allows for optimized performance in different settings.
Yet, it's not always perfect. Improper installation can lead to inefficiencies. For instance, misalignment can create extra friction, lowering overall effectiveness. Understanding these nuances is essential. The complexities in the design of a Planetary Gearbox Gear Reducer mean that maintenance and periodic checks are crucial. Regular assessments can ensure that the system performs at its best, avoiding costly failures.
Common Industries Utilizing Planetary Gearboxes
Planetary gearboxes are pivotal components in various industries. They shine in applications requiring high torque and compact design. A wide range of sectors leverages these systems, including automotive, aerospace, manufacturing, and robotics. Each industry benefits uniquely from the efficiency of planetary gearboxes, which offer reliability and precision.
In automotive applications, planetary gearboxes enhance the performance of automatic transmissions. They facilitate smooth gear changes, improving fuel efficiency. In robotics, they provide high torque in a compact form. This is crucial for robotic arms that perform precise movements.
Tips: When selecting a planetary gearbox, consider the load requirements and the application specifics. Not every gearbox suits every need. Assessing the conditions can avoid underperformance and failures.
Aerospace applications appreciate the lightweight and efficient design. Planetary gearboxes help in satellite systems and aircraft engines. They manage power effectively, contributing to safety and functionality. Manufacturing and conveyor systems also rely on these gearboxes to maintain steady production lines and consistent output.
While planetary gearboxes are effective, choosing the wrong one can lead to operational issues. Regular maintenance is vital to ensure longevity and reliability. Overall, understanding the industry's needs is key to utilizing planetary gearboxes efficiently.
Maintenance and Troubleshooting for Planetary Gear Systems
Planetary gear systems are effective components widely used in various industries. Maintenance is key to keeping them running smoothly. Regular inspections can detect wear and tear before they lead to failures. According to a report by the International Gear Engineering Society, more than 30% of gearbox failures are linked to inadequate maintenance.
A detailed maintenance routine should include checking lubrication levels and inspecting gear teeth for damage. Planetary gearboxes, especially the High Speed Planetary Gearbox, require specific attention to their oil type and level. Using the wrong lubricant can lead to overheating and reduced efficiency. Operators should also listen for unusual noises or vibrations. These signs may indicate misalignment or other issues that need addressing promptly.
Troubleshooting involves systematic checks. If a planetary gearbox fails to perform efficiently, examining the load conditions is essential. Overloading can lead to premature wear. Observing operational parameters can help identify whether the gearbox is functioning within its specified limits. Tools like vibration analysis can provide insights. This can reveal underlying problems early on, leading to better lifespan and performance.
Enhancing Productivity with ZLYJ Series Plastic Extruder Gearbox Reducer: Insights from Industry Performance Reports

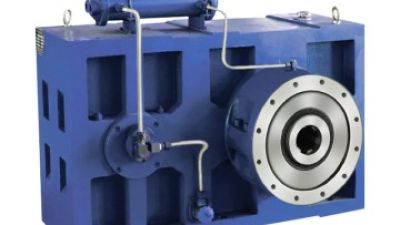

The ZLYJ Series Plastic Extruder Gearbox Reducer stands out as a vital component in enhancing productivity within the plastic extrusion industry. Specifically designed for high-precision and high-torque applications, this gearbox is essential for single-screw plastic extruders that operate in diverse processes such as film blowing, pipe and sheet production, as well as pelletizing and compounding lines. Its strategic placement between the motor and the extruder screw allows it to effectively transmit power while amplifying torque, ensuring the screw can rotate seamlessly even under significant backpressure that often exceeds 30 MPa.
In addition to its impressive power transmission capabilities, the ZLYJ gearbox is built for continuous operation, functioning smoothly 24/7 under elevated temperatures and extreme load conditions. This makes it an invaluable asset for manufacturers who prioritize efficiency and dependability in their operations. With a design that emphasizes exceptional rigidity and thermal stability, the gearbox ensures long-term reliability, reducing downtime and maintenance costs. As the industry continues to evolve, the ZLYJ Series demonstrates how advanced engineering can lead to significant improvements in productivity and overall performance in plastic extrusion processes.
