Picking the right planetary gearbox really matters when you're dealing with different applications. Planetary Gearboxes come with some pretty cool perks—they’re compact and pack a high torque punch, which is why they're so popular in industries like robotics and automotive. But honestly, figuring out exactly which one you need can sometimes feel a bit overwhelming. There are so many specs and configurations to sift through, and every application has its own quirks—load, speed, efficiency—you name it. It’s not just about matching specs; it’s also about your hands-on experience and what actually works best in your specific situation. Talking to experts can really make a difference. Good suppliers aren’t just selling gearboxes—they understand the ins and outs and can offer you solutions tailored to your needs. Sometimes, understanding the subtle differences and limitations can save you a lot of headaches down the line. So, do your homework, get some good advice, and make a decision that boosts performance and keeps things running smoothly.
Understanding the Functionality of Planetary Gearboxes in Machinery
Planetary gearboxes play an essential role in various machinery. They are designed to provide high torque while maintaining a compact size. Understanding their functionality helps in selecting the right type for your application. These gearboxes consist of a central sun gear, planet gears, and a ring gear. This arrangement enables them to distribute load evenly and enhance efficiency.
When selecting a planetary gearbox, consider the load and speed requirements. A gearbox must handle the demands of your specific machinery. Overloading can lead to failure and expensive repairs. Pay attention to the material and design as well. Different configurations affect durability and performance.
Tips: Always check for compatibility with your application. A mismatch can cause serious issues. Regular maintenance is crucial to ensure longevity. Monitor performance to catch potential problems early. Understanding these aspects helps avoid costly mistakes in your projects.
How to Choose the Right Planetary Gearbox for Your Needs?
This bar chart illustrates different types of planetary gearboxes based on their efficiency and torque rating. By understanding these metrics, you can make an informed decision on which gearbox to choose for your machinery requirements.
Key Factors Affecting the Performance of Planetary Gearbox Systems
When selecting a planetary gearbox, several key factors influence performance. The load capacity is crucial. It determines how much weight the gearbox can handle without failure. Industry studies show that gearboxes must support at least 1.5 times the intended load for durability. Material choice also impacts efficiency. High-strength steel or lightweight alloys provide better performance but may increase costs.
Another important aspect is the gear ratio. This affects torque and speed. Most applications prefer a higher torque ratio for improved efficiency. For instance, a gear ratio of 5:1 can enhance torque significantly, but may reduce speed. It's essential to find a balance based on specific needs. High ratios could lead to overheating in compact designs.
Durability is not just about materials. Lubrication methods also play a vital role. Proper lubrication reduces friction and enhances longevity. Research indicates that up to 30% of gearbox failures are due to inadequate lubrication. Additionally, consider the gearbox's mounting and alignment. Misalignment can cause excessive wear and tear, leading to performance issues. A thorough evaluation of these factors can help ensure a more reliable and efficient gearbox system.
Evaluating Load Capacity: How to Determine Your Gearbox Needs
When selecting a planetary gearbox, evaluating load capacity is crucial. Begin by assessing the maximum torque requirements of your application. Understand the forces your system will encounter. You want to ensure that the gearbox can handle these demands without straining. High Precision Planetary Gearboxes are designed for exacting tasks where load variations can occur frequently.
Consider the gear materials and design. Gearboxes made from robust materials tend to have higher load capacities. Look for well-engineered components that minimize backlash to improve performance.
Tips: Assess both static and dynamic loads. This approach helps you avoid choosing an undersized gearbox. Also, consider thermal loads. Excess heat can deteriorate gearbox performance, leading to premature failures. Choosing a gearbox that can handle thermal stress is a wise decision.
Finally, don’t forget to factor in safety margins. It’s better to have a gearbox that exceeds your requirements rather than one that barely meets them. Understanding the specific needs of your application will drive you toward more reliable and effective choices.
Comparing Gearbox Efficiency: Technical Insights and Industry Standards
Gearbox efficiency greatly influences overall system performance. Statistics reveal that poorly designed gearboxes can reduce efficiency by up to 20%. Understanding these figures requires a deep dive into industry standards. For industrial applications, planetary gearboxes typically exhibit efficiencies exceeding 95%. This efficiency is crucial for operations where power loss translates directly to increased costs.
Analyzing efficiency involves various factors, such as load capacity and speed ratios. A report from the International Organization for Standardization indicates that using the correct gearbox can enhance energy efficiency by approximately 15%. Many professionals neglect to account for these elements when selecting gearboxes. This oversight can lead to performance gaps that affect productivity.
In practical applications, environmental conditions also play a vital role. Temperature fluctuations can affect lubrication properties, further influencing gearbox performance. Industry insights suggest that regular maintenance can mitigate these issues. However, many companies underestimate the importance of routine checks. A well-maintained gearbox will not only operate at optimal efficiency but also extend its lifespan, ultimately reducing costs.
Selecting the Right Gear Ratio for Optimal Performance in Applications
Selecting the right gear ratio is crucial for optimal performance. This decision influences efficiency, torque, and speed in various applications. A well-chosen gear ratio can enhance machine reliability and productivity. Yet, many overlook its importance.
When dealing with Agricultural Gearboxes, consider the specific tasks at hand. A gearbox designed for high torque is necessary for heavy-duty tasks. Conversely, applications requiring high speed can benefit from a different setup. Evaluating the equipment's operational demands is essential. Sometimes, users may prioritize speed over torque, leading to suboptimal results. This can cause premature wear and tear.
Understanding the application environment is vital too. For instance, working in muddy or uneven terrain demands robust gear ratios. Ignoring this could lead to failures and increased maintenance costs. Regularly reviewing and adjusting gear ratios based on performance metrics can be valuable. Seek expert advice when in doubt. Ensure that the chosen planetary gearbox aligns with both current and future needs. This forward-thinking approach can save time and resources in the long run.
How to Choose the Right Planetary Gearbox for Your Needs?
| Gear Ratio |
Output Speed (RPM) |
Torque (Nm) |
Efficiency (%) |
Application Type |
| 3:1 |
300 |
45 |
90 |
Robotics |
| 5:1 |
240 |
60 |
85 |
Conveyor Systems |
| 10:1 |
180 |
80 |
92 |
Industrial Machinery |
| 15:1 |
120 |
75 |
88 |
Textile Machines |

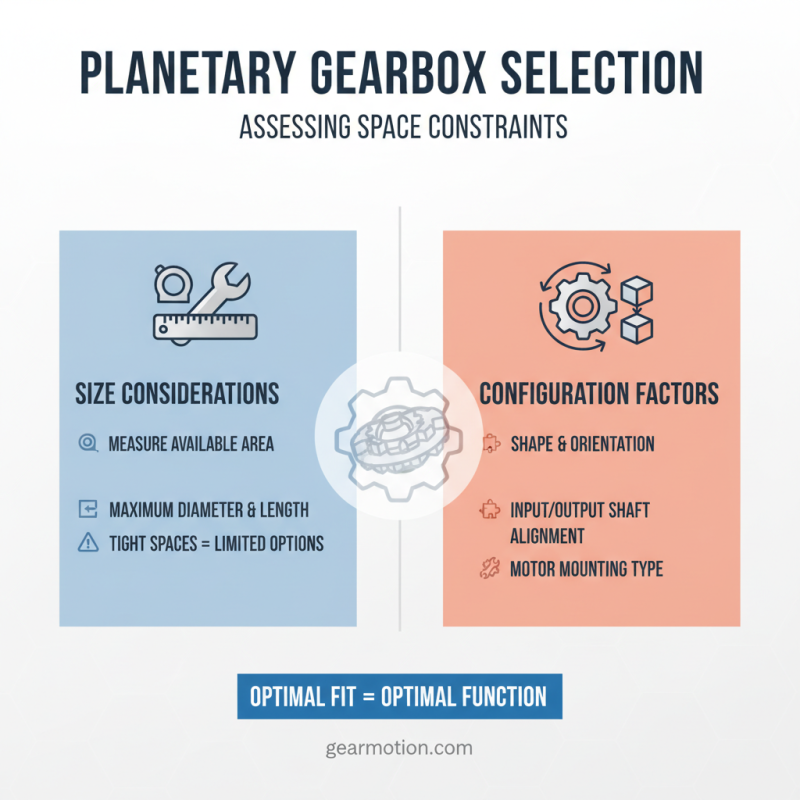

Assessing Space Constraints: Size and Configuration Considerations
When it comes to selecting a planetary gearbox, size and configuration play crucial roles. Assessing space constraints is essential. Make sure to measure the available area. This process may reveal unforeseen challenges. For example, tight spaces can limit your options drastically. The right gearbox must fit comfortably to function optimally.
Consider the height, width, and depth of the installation area. These dimensions directly affect performance. In certain applications, like Wind Turbine Gearboxes, configuration can be a game changer. The gearbox needs to align well with the motor and other components. It should not interfere with surrounding equipment. Think about the layout before making a decision.
Another factor is mounting options. Some gearboxes have specific orientations. Check if the gearbox can be installed horizontally or vertically. This choice impacts accessibility and maintenance. Reflection is necessary here; sometimes, a gearbox might seem perfect but doesn’t fit your needs once installed. Always visualize the complete system before finalizing your choice. Making an informed decision saves time and effort in the long run.
Material Selection and Durability in Planetary Gearbox Design
Choosing the right planetary gearbox involves crucial considerations, particularly regarding
material selection and durability.
Planetary gearboxes typically operate in harsh environments. Therefore, selecting the appropriate materials is vital.
High-strength alloys and composites are prevalent choices.
These materials provide strength yet are lightweight, enhancing performance.
Recent industry reports show that 30% of gearbox failures stem from material fatigue.
This statistic highlights the need for durable materials.
Steel, often used for gears, gives excellent wear resistance.
However, using advanced polymers can reduce weight and increase efficiency.
It's crucial to balance performance with material durability.
In real-world applications, miscalculating material strengths can lead to failure.
A study demonstrated that gearboxes made with subpar materials
failed 25% earlier than expected.
Investing in high-quality materials, such as those offered by
Comer Industries Gearboxes,
can mitigate these risks. Understanding the environmental factors affecting your gearbox
will also aid in making informed material choices.
Optimizing Wind Turbine Efficiency: The Role of Pitch Drive Planetary Gearbox Reducers
The optimization of wind turbine efficiency heavily relies on the precision and reliability of its components, particularly the pitch drive planetary gearbox reducer. This essential part of the pitch control system is responsible for adjusting the angle of the turbine blades in real time. By doing so, it enhances the aerodynamic efficiency of the turbine, allowing for better power regulation and the ability to safely shut down during emergency situations. With the capability to adapt to varying wind conditions, the pitch drive gearbox is crucial for maximizing energy output and maintaining operational safety.
Engineered for extreme conditions, the pitch drive planetary gearbox reducer boasts high torque density and exceptional fatigue resistance. Its robust construction ensures a long service life, which is vital in demanding offshore and onshore environments characterized by wide temperature fluctuations and continuous cyclic loading. This durability not only translates to lower maintenance costs but also contributes to the overall reliability of wind turbine operations. By implementing such advanced gearbox technology, the wind energy sector can significantly improve its efficiency, thereby fostering greater sustainability and energy generation in the fight against climate change.
FAQS
: Load capacity is crucial. It indicates how much weight the gearbox can handle without failing.
Gearboxes should support at least 1.5 times the intended load to ensure durability and prevent failure.
Proper material choice impacts efficiency and durability. High-strength alloys enhance performance but may raise costs.
Gear ratio influences torque and speed. A higher ratio can improve torque but potentially reduce speed.
Proper lubrication reduces friction and enhances lifespan. About 30% of gearbox failures stem from inadequate lubrication.
Misalignment, poor material choice, and inadequate lubrication can all lead to performance issues and failures.
Misalignment can cause excessive wear and tear, leading to potential performance issues over time.
Material fatigue can lead to early failures. Research shows that some gearboxes fail 25% sooner with poor materials.
High-strength alloys and advanced polymers can provide strength while reducing weight, improving efficiency.
Understanding the operational environment helps in selecting materials that withstand specific stressors and conditions.
Conclusion
Choosing the right planetary gearbox is crucial for optimizing machinery performance. Understanding the functionality of planetary gearboxes helps in appreciating their role in various applications. Several key factors, including load capacity, efficiency, and gear ratios, should be thoroughly evaluated to meet specific operational needs.
Additionally, considerations regarding space constraints and gearbox configuration can significantly influence the selection process. The materials used in the gearbox design directly impact its durability and overall performance. By carefully assessing these factors, one can make an informed decision when selecting planetary gearboxes that best fit their requirements for efficient and reliable operation.
