Automatic Car Wash Gearbox
Special Gearbox

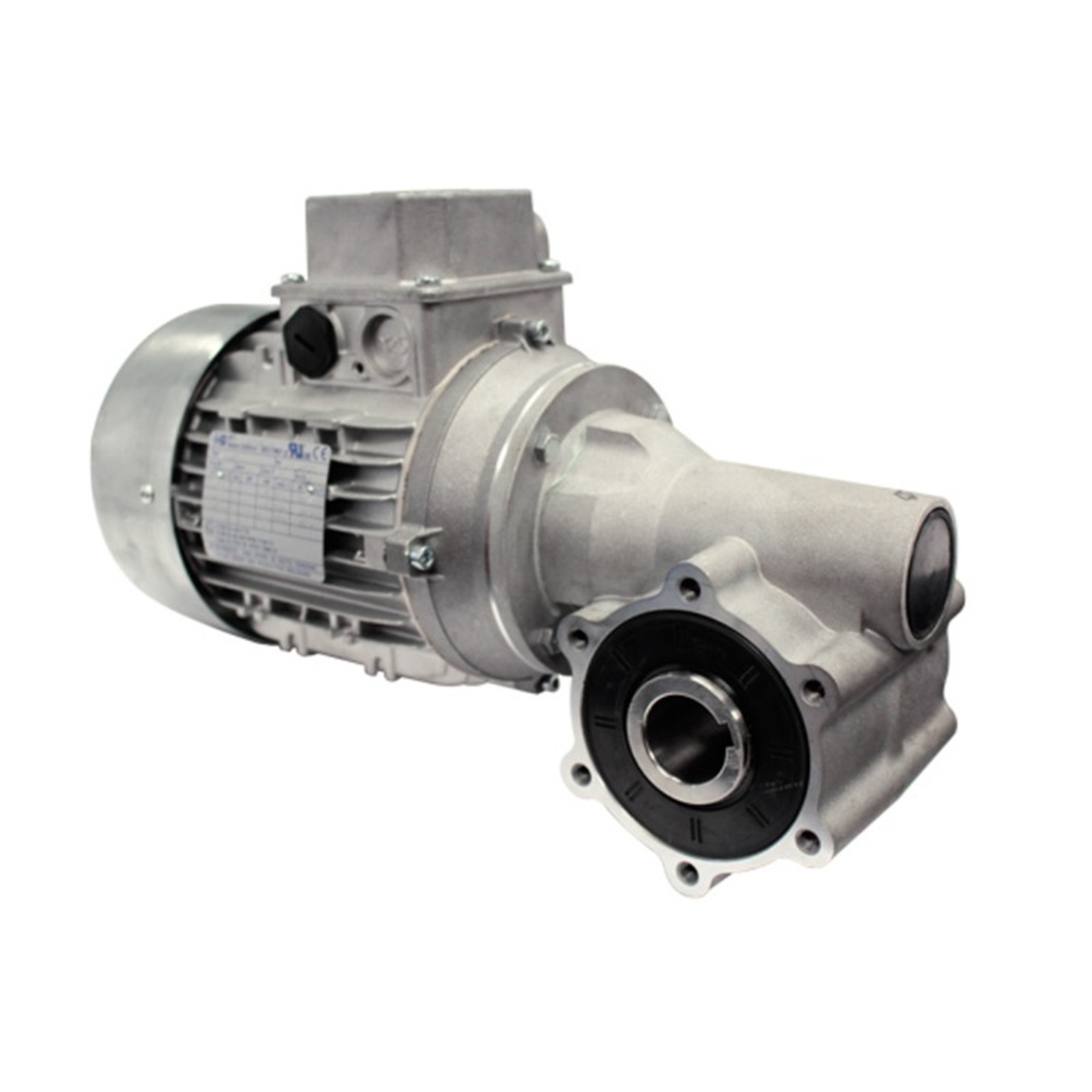

Automatic Car Wash Gearbox (1).jpg

Automatic Car Wash Gearbox

This automatic car wash gearbox is specifically engineered for modern intelligent car washing systems. It is primarily used to drive rotating brush rollers (including top brushes, side brushes, and horizontal brushes), lifting mechanisms, and swing arms in car wash equipment. As a core transmission component, the gearbox delivers high torque output, smooth operation, excellent corrosion resistance, and long service life. It reliably operates in harsh environments—such as those with high humidity, foam, and chemical detergents—significantly enhancing washing efficiency and equipment stability.

    Contact us
    product Information

    Product Overview

    This automatic car wash gearbox is specifically engineered for modern intelligent car washing systems. It is primarily used to drive rotating brush rollers (including top brushes, side brushes, and horizontal brushes), lifting mechanisms, and swing arms in car wash equipment. As a core transmission component, the gearbox delivers high torque output, smooth operation, excellent corrosion resistance, and long service life. It reliably operates in harsh environments—such as those with high humidity, foam, and chemical detergents—significantly enhancing washing efficiency and equipment stability.

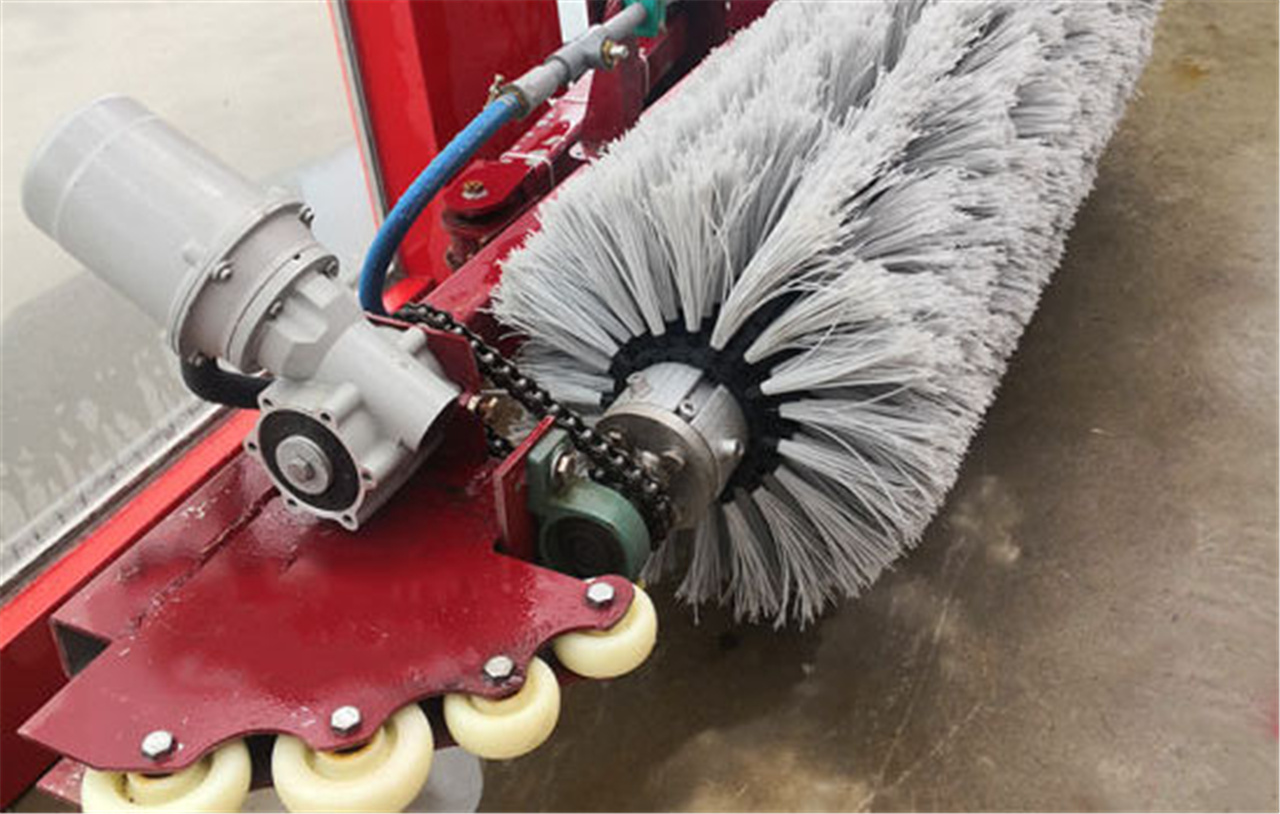

    Automatic Car Wash Gearbox (2)

    Technical Specifications

    Type

    Ratio

    Flange

    Power

    XRV050

    5     7.5  10     12  15     20  30     40  50     60  80    100

    71B14

    0.18KW     0.25KW    0.37KW    0.55KW    0.75KW     1.1KW

    80B14

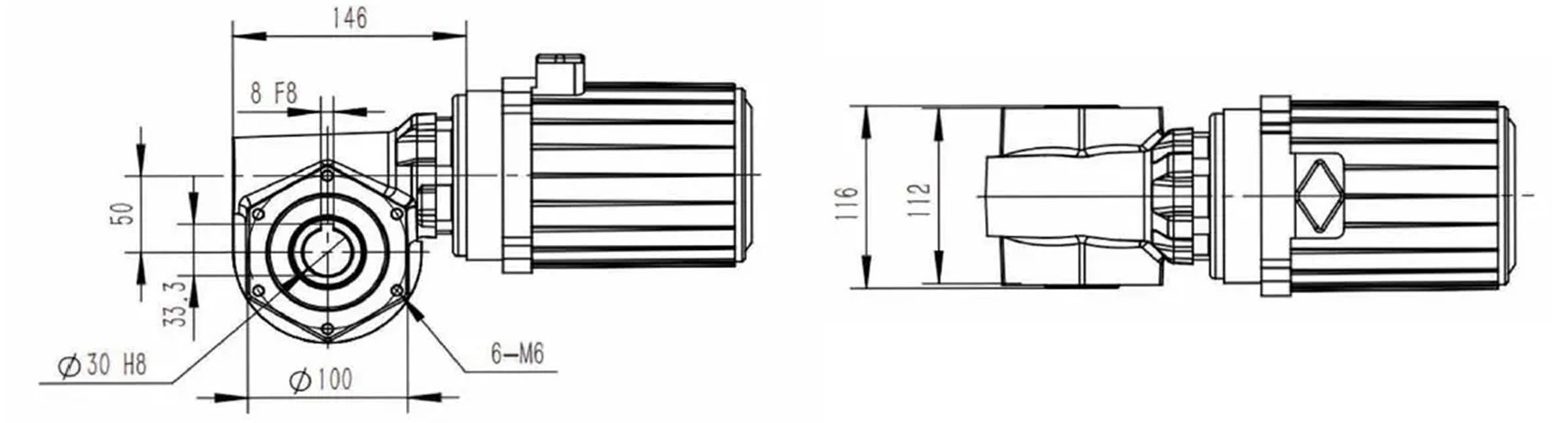

    Automatic Car Wash Gearbox (3)

    Type

    i

    n2/r/min

    Mn2/Nm

    Fr2/N

    Motor

    P1/kw

    L/mm

    XRV050

    5

    280

    17

    1577

    7134

    0.55

    180

    280

    23

    1577

    8024

    0.75

    205

    7.5

    187

    25

    1805

    7134

    0.55

    180

    187

    34

    1805

    8024

    0.75

    205

    10

    140

    22

    1987

    7124

    0.37

    180

    140

    32

    1987

    7134

    0.55

    180

    140

    44

    1987

    8024

    0.75

    205

    12

    117

    26

    2016

    7124

    0.37

    180

    117

    33

    2016

    7134

    0.55

    205

    117

    48

    2016

    8024

    0.75

    205

    15

    93

    31

    2274

    7124

    0.37

    180

    93

    46

    2274

    7134

    0.55

    180

    93

    63

    2274

    8024

    0.75

    205

    20

    70

    27

    2503

    7114

    0.25

    180

    70

    40

    2503

    7124

    0.37

    180

    70

    59

    2503

    7134

    0.55

    180

    70

    81

    2503

    8024

    0.75

    205

    25

    56

    32

    2696

    7114

    0.25

    180

    56

    48

    2696

    7124

    0.37

    180

    56

    71

    2696

    7134

    0.55

    180

    30

    47

    37

    2865

    7114

    0.25

    180

    47

    55

    2865

    7124

    0.37

    180

    47

    81

    2865

    7134

    0.55

    180

    40

    35

    33

    3153

    7114

    0.25

    180

    35

    46

    3153

    7124

    0.37

    180

    35

    68

    3153

    7134

    0.55

    180

    50

    28

    54

    3397

    7114

    0.25

    180

    28

    72

    3397

    7124

    0.37

    180

    28

    80

    3397

    7134

    0.55

    180

    52

    27

    55

    3482

    7114

    0.25

    180

    27

    73

    3482

    7124

    0.37

    180

    27

    82

    3482

    7134

    0.55

    180

    60

    23

    60

    3610

    7114

    0.25

    180

    23

    75

    3610

    7124

    0.37

    180

    23

    84

    3610

    7134

    0.55

    180

    80

    18

    64

    3973

    7114

    0.25

    180

    18

    77

    3973

    7124

    0.37

    180

    18

    89

    3973

    7134

    0.55

    180

    100

    14

    68

    4280

    7114

    0.25

    180

    14

    79

    4280

    7124

    0.37

    180

    14

    93

    4280

    7134

    0.55

    180

    Product Advantages

    High-strength alloy gears with superior load capacity

    Made from premium carburized alloy steel (e.g., 20CrMnTi), heat-treated and precision-ground for reliable performance under heavy loads.

    Ultra-low operating noise

    Gear accuracy meets ISO Grade 6 standard, ensuring smooth meshing and noise levels below 65 dB—ideal for noise-sensitive commercial environments.

    Excellent sealing & corrosion resistance

    IP65/IP66 protection rating with fully sealed housing and stainless steel fasteners to resist water, foam, and chemical detergents.

    Modular design for easy maintenance

    Enables quick disassembly; oil seals and bearings can be replaced individually, reducing downtime and maintenance costs.

    Multiple mounting & output options

    Available with solid shaft, hollow shaft, keyway, or spline outputs to match major car wash equipment brands.

    Long service life (>50,000 hours)

    Validated by over 10,000 hours of accelerated aging tests, ensuring reliable 24/7 operation.

    product Information

    Internal Structure

    The gearbox features either a parallel-shaft helical gear or planetary reduction structure (depending on model). Internally, it consists of an input shaft, multi-stage high-strength gear sets, precision roller bearings, an output shaft, and dual-lip seals. The housing is made of high-strength cast iron (HT250) or aluminum alloy, offering excellent rigidity and heat dissipation. Critical gears undergo carburizing, quenching, and precision grinding, achieving a surface hardness of HRC 58–62 for efficient power transmission and minimal wear. An integrated oil-level sight glass and breather valve facilitate routine maintenance and pressure equalization.
    Automatic Car Wash Gearbox (4)

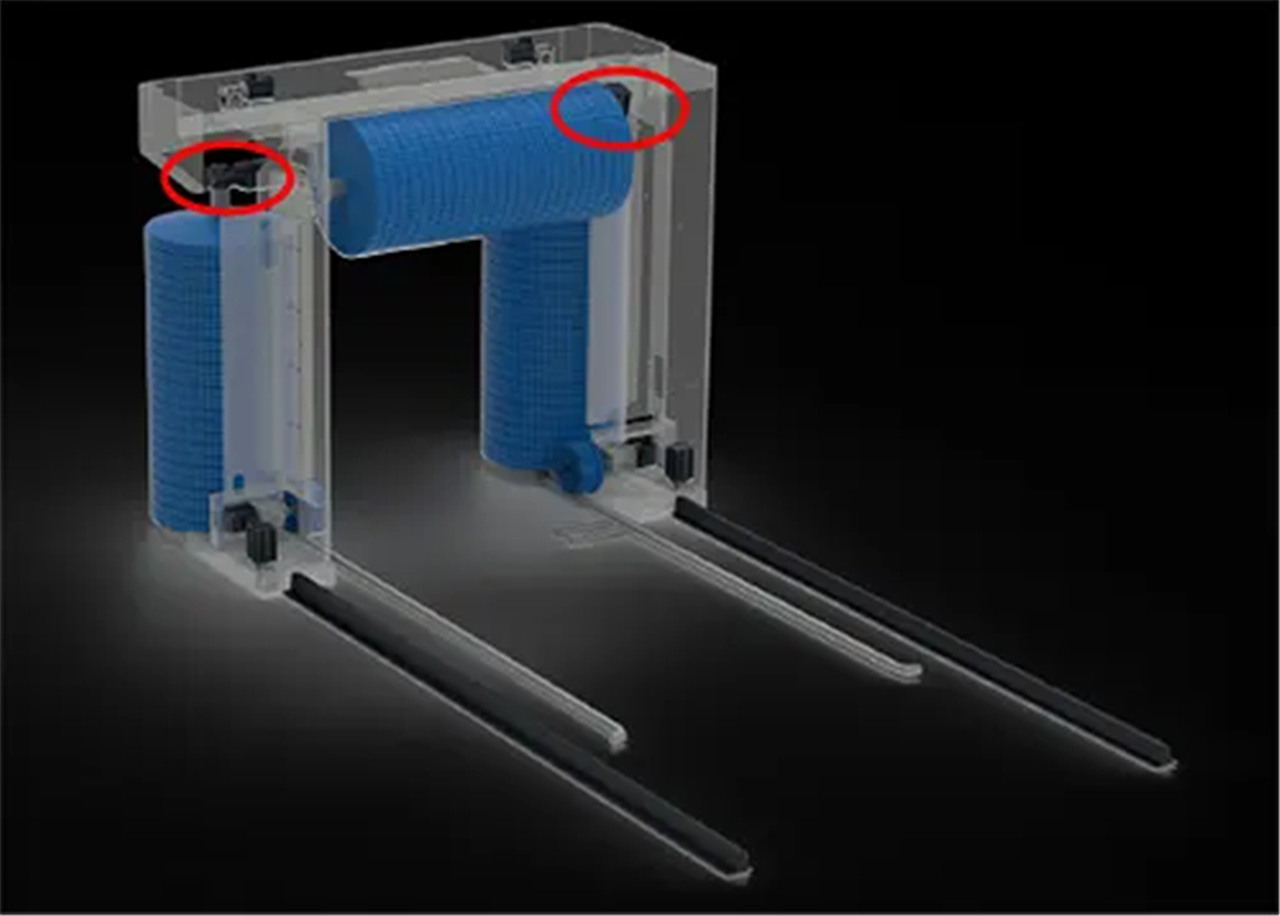

    Applications

    • Gantry-type automatic car washers (driving top & side brushes)

    • Tunnel-style car wash lines (roller brush & skirt brush drives)

    • Reciprocating car wash systems (horizontal brush oscillation & rotation)

    • Unattended smart car wash stations

    • EV-specific cleaning equipment

    • Commercial car wash centers & gas station integrated systems

    product Information

    How to Select the Right Model

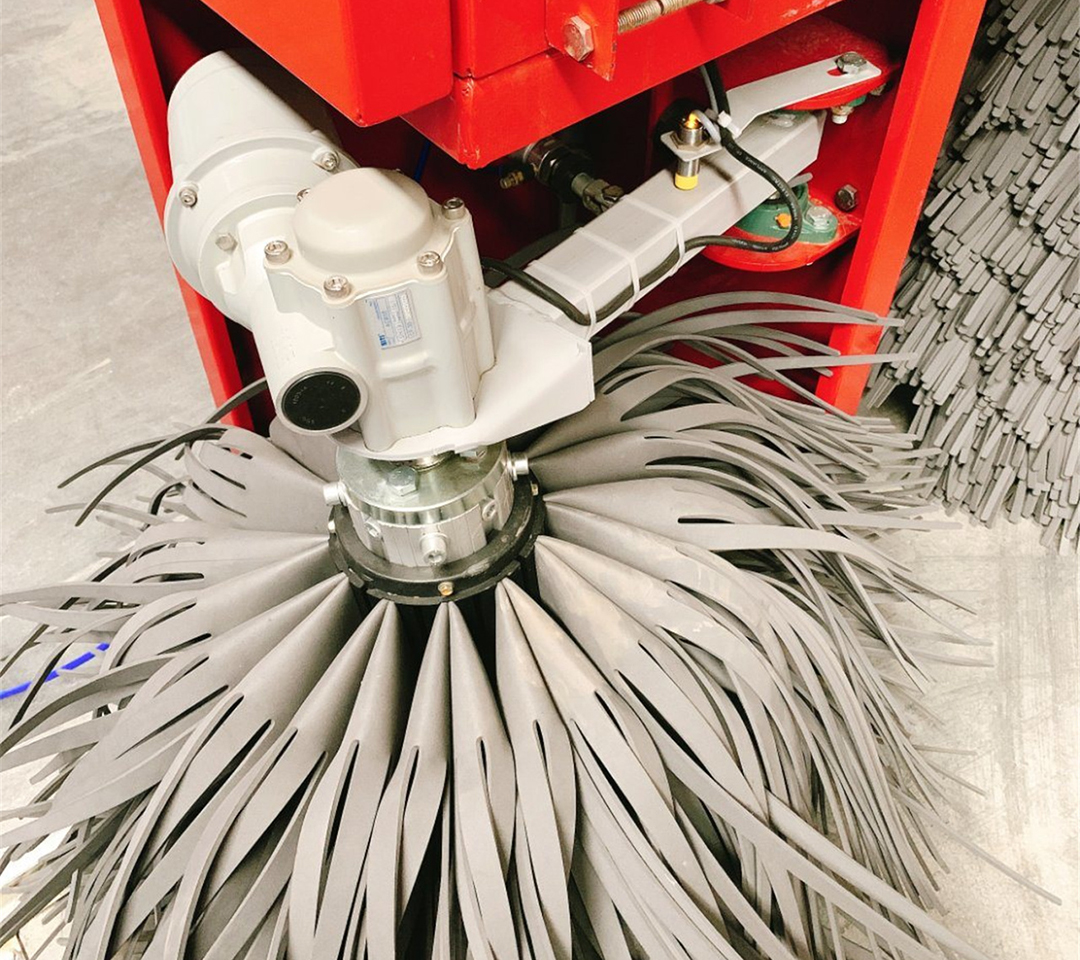

    Automatic Car Wash Gearbox (5)
    1. To ensure optimal compatibility, please provide the following:
    2. Car wash system type (gantry / tunnel / reciprocating);
    3. Driven components (e.g., brush roller diameter, length, material);
    4. Motor power and speed;
    5. Installation space constraints (flange size, axial/radial clearance);
    6. Operating environment (exposure to acidic/alkaline detergents, sub-zero temperatures, etc.);
    7. Need for custom interfaces or enhanced protection.
    Our engineering team offers free selection support and 3D installation drawings upon request.

    About Our Factory

    About Us

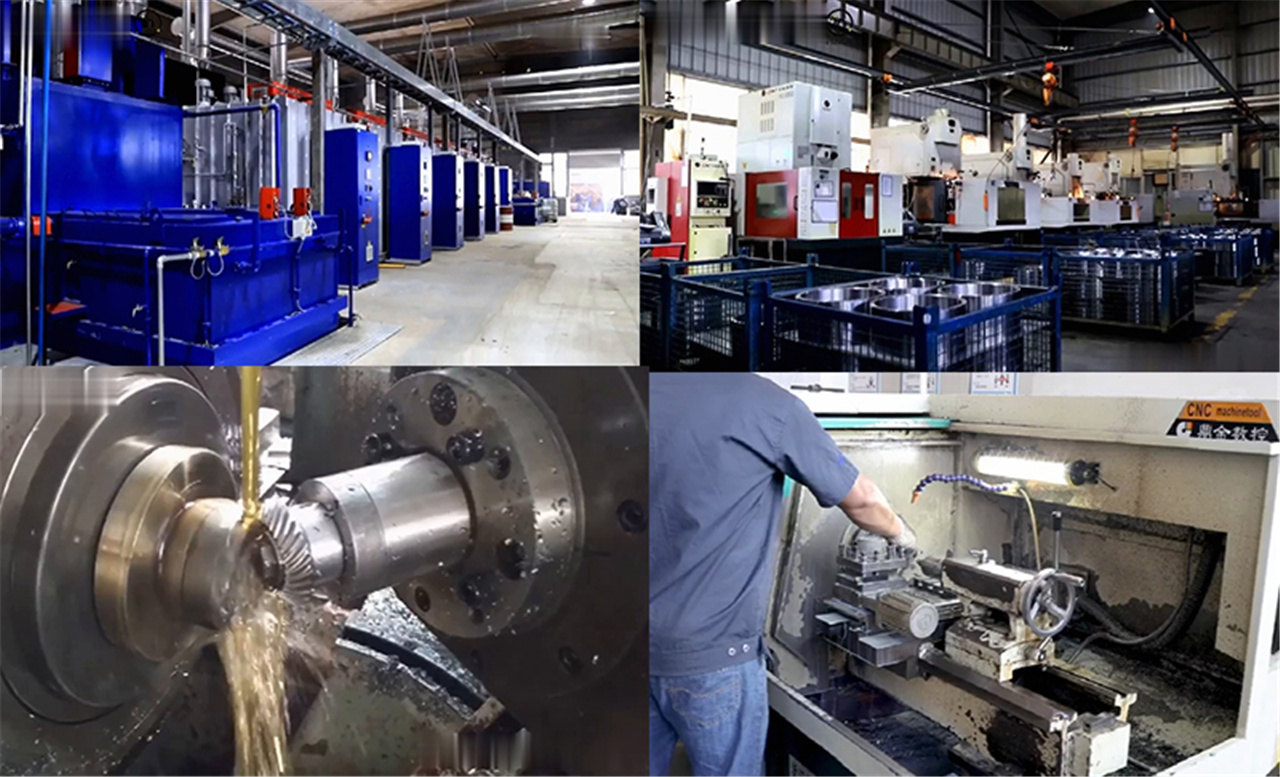

    We are a national high-tech enterprise specializing in the R&D and manufacturing of industrial gearboxes and transmission systems, with over 15 years of industry experience.  Our 30,000-square-meter factory—located in a major Chinese manufacturing hub—is equipped with advanced machinery including German HOFLER gear grinders, Japanese MAZAK CNC centers, CMMs, and fully automated assembly lines.  Adhering strictly to ISO 9001 quality standards, our products are CE and RoHS certified and exported to more than 40 countries, including the USA, Germany, Australia, and the Middle East.  We are committed to delivering highly reliable and cost-effective transmission solutions to global automatic car wash equipment manufacturers.
